BioLite Net
- Fingerpirnt
- RFID Card
- 5,000 users/50,000 records
- IP65 Waterproof & Weatherproof
- TCP/IP, RS-485
|
Download: Brochure | User Guide | BioStar Manual
|
Rugged structure for outdoor installation and extra durability
|
| - IP65 rated waterproof and weatherproof structure |
| Fast and accurate fingerprint identification |
- Award winning fingerprint algorithm (No.1 in FVC2004 and FVC2006)
- 1 : 2,000 fingerprint identification in 1 second |
| Easy installation and connectivity |

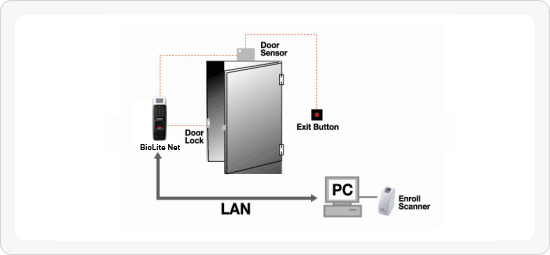

- Network interface by TCP/IP or RS485
- Wiegand input/output configurable up to 64 bits
- Internal relay for direct lock interface (standalone control mode) |
| Easy operation and management |
- Built-in keypad and RF card reader for multi-modal user authentication (Fingerprint, PIN, card)
- Easy-to-use PC software for access control and time attendance
- Template on card to store fingerprint data on a smart card |
| Slim and elegant design |
- World¡¯s smallest fingerprint terminal for time attendance and access control
- Slick and Slim design for narrow spaces
- Graphic LCD, Multi color LED and multi-tone buzzer for intuitive user interface |
| Full access control features |
- 128 access groups and time schedules
- Anti-passback door zones supporting 64 readers
- Tamper switch and duress finger option |
| External relay unit |

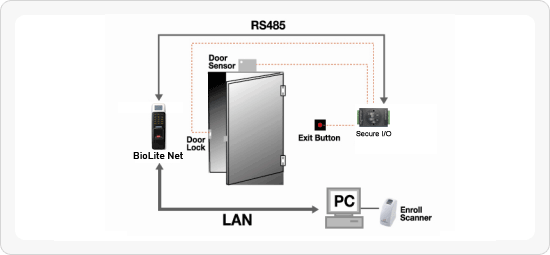

| - Secure door control and I/O expansion (secure reader mode) |
| CPU |
400MHz DSP |
| Memory |
8MB flash + 16MB RAM |
| Fingerprint Sensor |
500 dpi optical sensor |
| Identification Speed |
2,000 matches in 1 second |
| Fingerprint Capacity |
5,000 fingerprints (10,000 templates) |
| Log Capacity |
50,000 events |
| RF Card |
Mifare (13.56 MHz), EM(125 KHz) |
| Authentication |
Finger / PIN / Card |
| Network Interface |
TCP/IP, RS485 |
| Wiegand |
1 channel (input/output switchable) |
| TTL I/O |
2 inputs for exit switch and door sensor |
| Internal Relay |
Deadbolt, EM lock, door strike, automatic door |
| Ingress Protection Rate |
IP65 class |
| LCD |
128 x 64 pixel, black & white |
| Keypad |
3 x 4 keypad, 3 navigation keys |
| Sound and Interface |
Multi-color LED and multi-tone buzzer |
| Operating Voltage |
12VDC |
| Operating Temperature |
- 20¡É~ 50¡É (-5¢µ ~ 122¢µ) |
| Size |
60mm ¡¿ 185mm ¡¿ 40mm (W ¡¿ H ¡¿ D) |

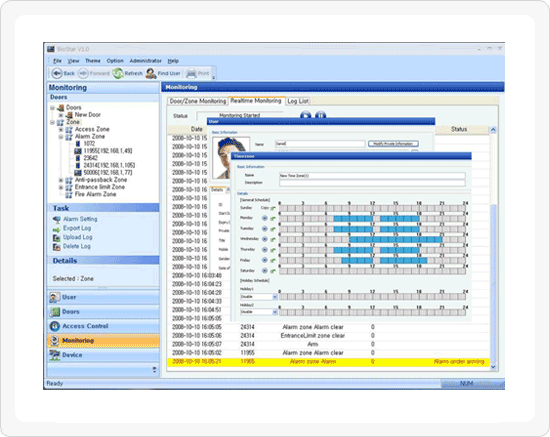

BioStar is a management software running on MS Windows based PC platforms. The BioStar access control system based on IP connectivity and biometric security. The software enables Suprema access control devices to perform comprehensive access control functions including user management, device management, door/zone control, real-time monitoring and so on.
