FBL2200 Series

FBL2200 Series 1

download brochure button EN


The ZKTeco FBL2200 dual lane flap barrier turnstile is an elegant cost-effective entrance control system designed for high-traffic volume. The FBL2200 series should work together with FBL2000 series to build multiple lanes.

The FBL2200 is a Flap Barrier Turnstile for additional Lane series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes FBL2200 highly durable.

 FBL2200 barriers are normally held in a locked position, thus denying access to the secured side. Upon FBL2200’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers retract upward automatically, thus allowing users passage to the secured side.

During emergencies the barriers automatically retract upward, thereby ensuring users FAST unencumbered exit to safety. A battery for power outage safety can be installed for retracting the barrier automatically.

FBL2200 provides both security and convenient space, all in a very durable and elegant compact design.


  • SUS304 stainless steel casework ensure long-lasting durability

  • High quality electrical components

  • Barriers retract automatically during emergencies

  • Barriers retract automatically during power outage with battery installed

  • All smooth finish. No exposed screws

  • Ergonomic design makes card and fingerprint authentication fast & simple for users

  • FBL2200 series ships already integrated with our customers’ preference for either card or fingerprint

      access control reader. This greatly reduces installation time & expense

  • FBL2200 series and associated access control readers are all factory-tested prior to shipping

  • ZKTeco provides true plug&play turnstiles with the lowest possible total cost of ownership in the


  • LCD on the flap barrier contrl board, easy operation

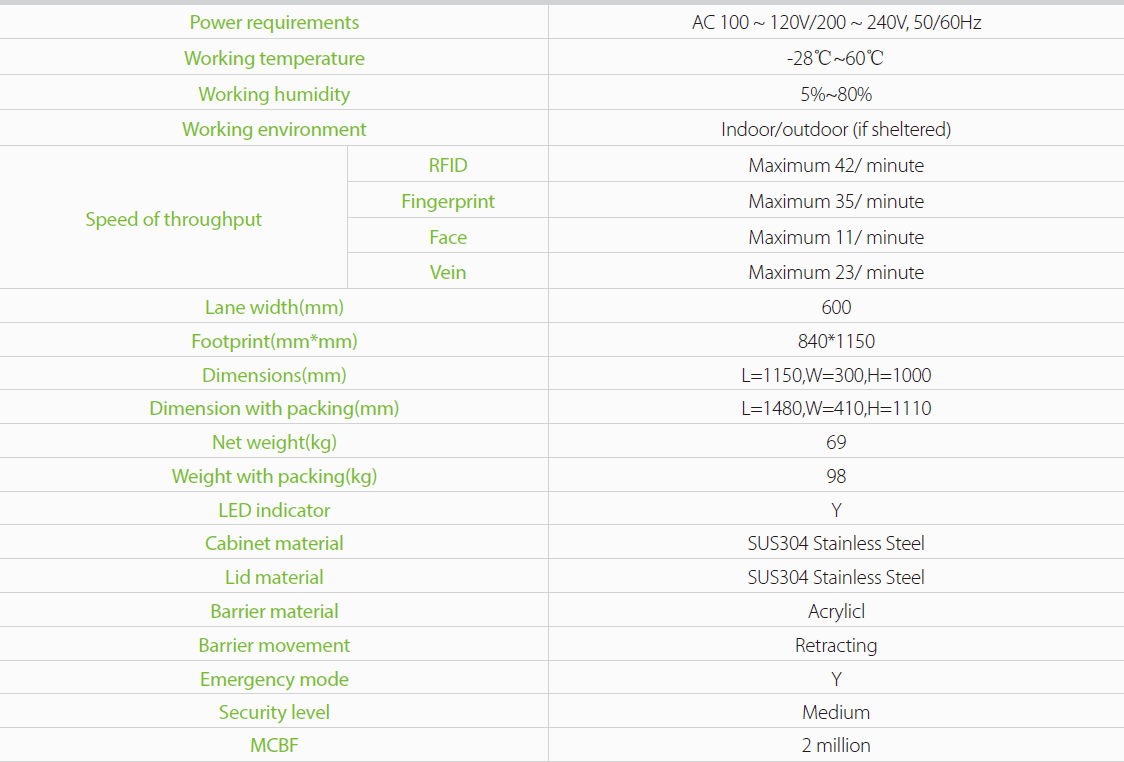

Specification FBL2200 Series


FBL2200 Series 2
