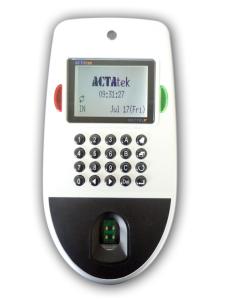

ACTAtek Fingerprint Access Control


ACTAtek Fingerprint Access Control & Time Attendance

  • Fingerprint Access Control and Time Attendance
  • 1,000 users (Optional 3,000, 5,000, 10,000, 20,000 users)
  • 75,000 transactions (for 1,000, 3,000, 5,000 users model)
  • Built-in Camera, 500 photos stored
  • Bulit-in Web and Dababase Server
  • IP65

Offering keypad PIN (Password) and Fingerprint Authentication options, the ACTAtek FingerPrint Scanner unit is used in both security (access control) and workforce management applications.

  • Embedded Web server for easy access via any browser
  • Encrypted network communication
  • CMOS camera

Description

       ACTAtek Fingerprint only model is based on state of the art 500 dpi Optical Fingerprint Scanning Technology. The Fingerprint only model also supports an optional built-in CMOS camera that can take snapshots of accepted or rejected attempts and store up to 500 photos directly in the ACTAtek database for viewing via the web interface/browser.

       The Fingerprint only model has a limitation on the number of users since it stores fingerprint templates directly in the unit as encrypted binary data. It stores up to 7 templates for each user enrolled and a maximum of 20,000 users are supported.

Features

  • Embedded software, no software installation necessary.
  • State of the art embedded, encrypted Linux web server technology. Control, configure & administrate via web browser
  • SSL encrypted communication between units & browser
  • Real time system update & configuration
  • 500DPI optical scanner
  • Auto-match support up to 1,000 users (1:N)
  • Operates in Standalone or Network modes
  • Robust and scalable (thousands of users on global basis) for enterprise-wide deployment
  • IP 65 rated, weather & impact resistant casing (fluid ingress, dust, salt, fog protection)
  • Built-in CMOS camera (optional)
  • Up to 500 photos (FIFO internal storage)
  • API support for easy interface to most software applications
  • 1,000, 3,000 , 5,000 ,10,000, 15,000 or 20,000 users
  • Up to 75,000 event logs
  • Five Modes of authentication
    • Fingerprint only
    • ID + Fingerprint, and
    • ID + PIN.
  • Multi-lingual interface (LCD & Web)
  • Wiegand 26-bit output

Specification

Scanner Features:

  • Fingerprint image resolution: 500DPI
  • False Rejection Rate (FRR): 0.01%
  • False Acceptance Rate (FAR): 0.0001%
  • Allowed fingerprint rotation: +/- 15 Degrees
  • Matching speed: 0.05Sec
  • Scanning speed: < 1 sec

ACTAtek Fingerprint Unit Spec

Description Spec
Fingerprint Enrollment Yes
Built-in SmartCard Reader No
Built-in Web and Database Server Yes
DOC flash (MB) 128
Maximum users enrollment 3 templates for 15k, 20k and 30k users model 7 templates for 20, 1k ,3k, 5k and 10K users model
Number of users 1/3/5/10/15/20k
Max transaction records stored 10k eventlog for 10k, 15k, 20k and 30k users model 75k eventlog for 1k ,3k and 5k users model
Max photos stored 500
SNMP compliant Yes. (available for certain models with patch)
Exchange information between Devices (Primary / Secondary) Yes
Static IP address assignment Yes
Dynamic IP address assignment(DHCP) Yes
Backlit LCD Display(128x64) Yes
Non-volatile Memory 128MB/256MB
Computer supported (with Internet Browser)

Mac OS Windows 95/98/NT/2000/XP/Vista/Server Pocket PC(PDA) /Linux PC /Unix Machine

Valid Characters for Employee ID 0-9, A-C (max. 16 characters)
Authentication Time <1 second
Database interface interface support ODBC/JDBC
Encryption Secure Socket Layer(SSL)
Multilingual support Yes
Network interface 10BT Ethernet (Built-in) GSM/GPRS, Wi-Fi, Modem (external device is required)
Expansion RS-232/RS-485 Weigand Output
Operation Mode Primary/Secondary mode
Programming API SOAP API
Report(TXT/CSV output format supported) Yes
Remote Control(TCP/IP) Yes
Operation Temperature -20?C-60?C
Relay support 2 Relays
Case IP65-fluid ingress, dust, salt, fog protection
Safety Standard CE, FCC, IP65

Solution Options

ACTAtek Combination Unit - Options for additional functionality



External Smartcard Reader: Up to 6 external readers can be connected to one ACTAtek unit.

Secure External Relay: can be installed/hidden inside the secure premises ensuring no direct access to door strike connections.

Smartcard cards and fobs: for use with the embedded smartcard reader.

WiFi Adaptor: To create a wireless network connection in WLAN environment

Power Over Ethernet (PoE) splitter: to provide the unit with 12V supply from Ethernet that has PoE capability.

Mobile Battery Kit: IP67 case and battery to power one ACTAtek in mobile applications.

V220 GSM Gateway: To provide cellular data connection in remote locations. Also offers WiFi gateway.

UPS: a 12VDC/3A battery supply to maintain AC and TA integrity during power outages.
