BioStation Fingerprint Access Control Time Attendance


  • Fingerprint
  • Card
  • Access Control
  • Time Attendance
  • 25,000 Fingerprints
  • 500,000 Records

Download: Brochure | Installation Guide | User Guide | BioStar Manual


Accurate and fast fingerprint algorithm
Award winning fingerprint algorithm (No.1 in FVC2004 & 2006)
Easy network installation
Wireless LAN(optional), TCP/IP, RS 485 for network connection
Fast matching time
Identify 3,000 templates in a second
Large capacity for fingerprint & log
400,000 templates and 1,000,000 log events
Flexibility in operation mode
Various operation modes - Fingerprint, PIN, PIN + Fingerprint
Powerful and Intuitive user interface
World first 2.5" full color LCD and user-friendly function keys
Multiple sensors : Optical, Capacitive, Swipe
Suitable sensor selection for different environment


2.5" 16M Color LCD Display messages, video, animation and photos to convey various information and notices
Wi-Fi Wireless LAN Easy data access and contents transfer from PC using wireless network without wiring
USB memory slot Easy data transfer to PC or other BioStations using a USB memory device
High quality sound 16 bit Hi-Fi sound for background music, sound effect and voice instruction
Multiple RF card option : 125 KHz EM, HID Prox. Offer a wide selection in authentication mode and easy security system upgrade from EM or HID proximity card reader
Template on Card (Mifare13.56MHz) Store fingerprint data on smart card. Easy fingerprint management without privacy concern.


Product Type
BST-OC (Optical)
BST-TC (Capacitive)
BST-FC (Swipe)
2,.5" 16M Color LCD
50,000 template and 500,000 events
USB memory slot
High quality sound
BioStation Wireless
BSTW-OC (Optical)
BSTW-TC (Capacitive)
All feature of BioStation
Wi-Fi Wireless LAN
BioStation RF
BSR-OC (Optical)
BSR-TC (Capacitive)
All feature of BioStation
125kHz EM Card
BioStation RF Wireless
BSRW-OC (Optical)
BSRW-TC (Capacitive)
All feature of BioStation
125kHz EM card
Wi-Fi Wireless LAN
BioStation Mifare
BSM-OC (Optical)
BSM-TC (Capacitive)
All feature of BioStation
Mifare (13.56MHz, ISO14443A)
BioStation HID
BSH-OC (Optical)
BSH-TC (Capacitive)
All feature of BioStation
125kHz HID Prox. Card
Sensor Type
Sensor type
Swipe type thermal
Resolution (dpi)
Sensing area (mm)
16.0 x 18.0
12.8 x 18.0
14.2 x 0.4
Image size (pixel)
288 x 288
256 x 360
280 x 8


CPU Dual CPU (32bit RISC + 400MHz DSP)
Memory 1GB Flash + 34 MB RAM
Display 2.5" QVGA 16M Color LCD
Fingerprint identification speed 1 to 3,000 identification in 1 sec
Fingerprint capacity 400,000 templates (1:1), 20,000 templates (1:N)
Log capacity 1,000,000 events
Network Interface Wireless LAN (optional), TCP/IP, RS485
PC Interface USB, RS232
USB Memory Slot USB Host

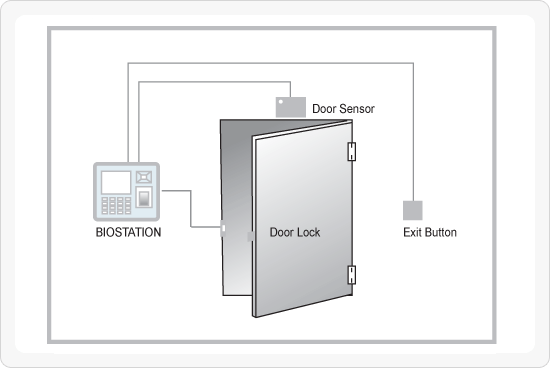

Output Relay Deadbolt, EM lock, door strike, automatic door
External I/O Wiegand I/O, 4 TTL I/O
Operation modes Fingerprint, PIN, PIN + Fingerprint
Door phone Microphone and speaker for door phone
Navigation key Navigation key for the menu movement
Function key 4 Function Keys to user-defined functions
Operating Temperature - 20¡É~ 50¡É (-5¢µ ~ 122¢µ)
Size 135 x 128 x 50mm (W x H x D)


Plastic Stand Type A

Plastic Stand Type B

Access Point
(for BioStation Wireless model)


Secure I/O

Power Adaptor (12V, 2.5A)


Network (Wireless LAN or USB Memory)
Network (TCP/IP or RS485)



Time attendance and access control for offices
Integrated payroll and HR management of employees
Networked security for IBS buildings, financial and research institutes
Data collection for customer reward management



BioStar is a management software running on MS Windows based PC platforms. The BioStar access control system based on IP connectivity and biometric security. The software enables Suprema access control devices to perform comprehensive access control functions including user management, device management, door/zone control, real-time monitoring and so on.



BioEntry Plus
Secure I/O
Starter Kit
